ICOM     IC-A14

  Delcom Industries                 Selma  AL  36701

            Airband Radio

     New Sales phone:     334  875-4805            FAX  phone:    334  875-5220




Radio Man has the best prices in the South!

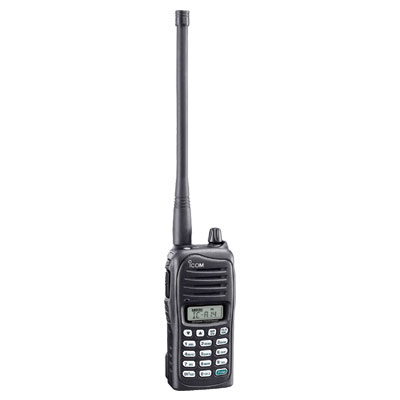

                                  ICOM   A14  Airband Portable

          NO LONGER AVAILABLE FROM ICOM   see A16

                           Airband  portable



General Specifications

Made with the student pilot in mind

The IC-A14 series is the ideal flight companion for the student pilot. This radio practically pays for itself by saving pilots both engine hours and fuel during preflight communications with the tower.

700mW* loud audio

Because air band radios are usually operated in high-noise environments, it is essential for the radio to provide loud and clear audio. The IC-A14/S series employs a BTL amplifier that doubles the audio output, offering loud and clear audio thatll cut through cabin or tarmac noise.
* Internal speaker only

Full keypad type or Simple keypad type

The IC-A14 full keypad type allows you to input the channel or frequency directly and has an exclusive button for the 121.5MHz emergency channel. The IC-A14 receives NAV and WX channels. The IC-A14S simple keypad type provides simpler operation with a minimum of buttons that is suitable for ground crews.

Compact, light weight and rugged body

The IC-A14 series is compact (only 120mm tall) and light weight (approx. 350g including antenna and BP-232N). The water resistant construction, equivalent to IPX4, provides reliable operation in wet conditions.

Large capacity Lithium-Ion battery pack

With the 2000mAh large capacity Lithium-Ion battery pack, BP-232N, the IC-A14 series provides stable output power and 18 hours long (approx.) operating time*. The BP-261, battery case takes 6 AA (LR6) alkaline cells for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90.

200 channels with memory banks

A total of 200* memory channels can be named with an 8-character channel name for easy recognition. For fast and simple operation, these channels can be grouped into 10 memory banks*.
* IC-A14 only. The IC-A14S has 100 memory channels and memory banks are not available.

BC-179 holder type battery charger

The battery charger, BC-179, securely holds and charges the radio, even in bumpy conditions. The cigarette lighter cable, CP-22, can be used with the BC-179.

  • 5W typ. (PEP), 1.5W (CW) output power
  • Side tone function allows you to hear your own voice via a third party aviation headset
  • LCD backlight for night time operation
  • ANL (Auto Noise Limiter) for noise reduction
  • Low battery indication and beep alert
  • Adjustable microphone gain setting
  • BNC type antenna connector

Supplied Accessories  with  your  A14 radio:

  •   Antenna FAB02AR
  •   Battery  BP-232N
  •   Desk charger BC-160  for 115 volts
  •   Belt clip
  •   Hand strap
  •   User Manual,
  •   three year warranty



Other Airband portables in stock:

                       ICOM   A25





Email me for your FREE owners manual, to see if this is the radio you need.

Ask Me Radio questions,  even if you did not buy it from me

*****************************************************

                 I  only ship inside USA



********************************************************



                         Or    Order equipment  by calling me by:

         Phone,  Fax,  or  Email  delcomindustries@yahoo.com

                   I take  VISA   Master  Card    or  Discover Card



                 I  only ship inside USA

*********************************************

       Equipment prices subject to change at any time without notice!
