Longer available -- accessories only
analog only or
upgradeable to P25
vhf P25 digital
or F2721D uhf
Mobile Radio Transceivers
call or email for pricing
New Sales phone:
RADIO MAN has the best prices in the SOUTH
FAX only: 334 875-5220

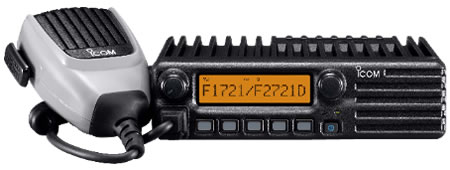

For organizations who run an analog radio system and must migrate to a conventional P25 digital system, Icom provides one of the best solutions. The new F1721D series mobile allows you to program P25 digital and/or FM analog mode per channel. Flash ROM capability means future upgrades and flexible customization, tailored for your system. Moreover, built-in multiple tone signaling capability and an optional voice scrambler satisfy existing analog FM system requirements. This new Icom’s range frequency coverage and rugged construction ensures a flexible, long life radio for you. Icom is the smart choice for current – and future – public safety communication needs.
Project 25 (P25) Digital Features
The IC-F1721D/F1821D is APCO Project 25 (P25) compliant. It ensures interoperability with other manufacturer's P25 digital radios in conventional mode.
Upgrade to digital option*
The IC-F1721D/F1821D is available in two digital versions. One version is P25 compliant out of the box. Version two is an analog only radio that is future upgradable to P25 digital compatibility– grow into digital with Icom.
*Upgrade software available later.
Mixed mode operation
The IC-F1721D/F1821D is compatible with both analog FM mode and P25 digital mode. Program digital and/or analog FM modes per channel. The mixed mode scan allows you to detect and receive both analog FM and P25 digital modes and to transmit either mode depending on programming.
* NAC (Network Access Code) operation provides quiet stand-by in a large group and is used to open a closed digital repeater.
* Selective call/individual call using Unit ID and talkgroup ID
* 100 Unit ID, 250 talkgroup ID memories
Mechanical and Analog Features
Detachable front panel
With the optional remote control kit, RMK-2 and separation cable, the front panel of the radio can be detached from the main unit. It allows you flexible installation even in limited installation space. Separation cable length is selectable from 1.9, 3.0 and 8.0m.
Dot matrix, multi-function LCD
Using a high contrast LCD, the IC-F1721/F1821 series shows operating channels, tone and other settings clearly under nearly any lighting conditions. With a dot matrix display, upper and lower case characters can be easily distinguished. In addition, you can change the display setting to show one line and 12 characters, or two lines and 24 characters via programming.
Heavy-duty microphone, HM-148
The new heavy-duty hand microphone, HM-148, uses a dynamic design that is made to handle punishment. The oversized dimensions allow for easy use with gloves on. And the curl cord can be easily replaced by simply opening the case–easy maintenance for long term use.
With heavy-duty construction, the IC-F1721/F1821 series is built to last. The
IC-F1721/D incorporates a 4W speaker in an impact resistant polycarbonate front panel for crisp clear audio, and the IC-F1821/D has a backlit 10-keypad for extended operation. The 10-keypad version is supplied with an external speaker.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone, 5-Tone or BIIS capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. You can also set up selective calls to individuals or control a repeater.
Multiple 2-Tone, Multiple 5-Tone
Encode or decode up to 10 2-Tone, 8 5-Tone codes on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.
• Bell icon • Answer back • Stun
• Beep sound • Auto transmit • Scan
• External out
256 memory channels, 32 zones
Up to 256 memory channels can be divided into 32 memory zones, and allows you quick access to the intended channel.
Tactical group function
The tactical group function allows you to copy memory channels into a new memory zone (using Zone 32) without using PC programming. This function allows you to construct a temporary work group on site for working with inter organization groups, such as in case of a large scale disaster.
Built-in inversion type voice scrambler
The IC-F1721/F1821 series includes a built-in inversion type voice scrambler in all models. When a more secure system is required, the optional voice scrambler unit UT-109 or UT-110 is available. * These voice scrambler functions are not available in digital mode.
Radio stun/kill and Power-on password function
The radio stun/kill functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. The power-on password prevents unauthorized people turning on the radio.
BIIS 1200 compatible
The following selective calling and data message features are available with the BIIS functions.
* BIIS system is not programmable simultaneously with digital mode
* Receive up to 95-characters of free text
* 8 SDM transmit memories (12-characters each)
* 24-status messages
* Own ID and 7 Group IDs registration
* Digital ANI (Automatic Number Identification)
* Max. 6 received SDM and message history and max. 3 received call history capability
* Position data transmission with a GPS receiver
* Microphone hanger action programmable (Scan, monitor, priority channel)
* Optional OPC-617 D-SUB 9 pin connector for dimmer control, modem connection
* D-SUB 25 pin connector for future PC connection
* Built-in audio compander (Analog mode only)
* Wide frequency coverage (136–174MHz)
* LTR® Trunking system capability with the optional UT-111 installed.
* PC programming capability
* 7 group IDs
* 24-status Messages
* Send 8-character SDM (Short Data Message)
* Receive up to 95 characters of free text
2 year warranty on radio
Price includes programmed on your frequencies and PL tones.
NO EXTRA CHARGE.
Frequency reprogramming, for the life of the radio,
Free! You just pay shipping.
Also after the sale my service does not stop.
Order a FREE PDF file OWNER'S MANUAL
just email me!
Please feel free to call or email for any type of info on ICOM RADIOS, even if you didn't buy it from me.
