ICOM

F3021S vhf

   F4021S uhf

Radio comes with BC-160 desk charger

  Delcom Industries        Selma  AL  36701
Portable Radios                    New Sales phone:     334  875-4805

     FAX  phone:    334  875-5220






                                        ICOM

  F3021S / F4021S  series  portables

This model is no longer available  from ICOM

                      see replacement  F1000s   F2000s

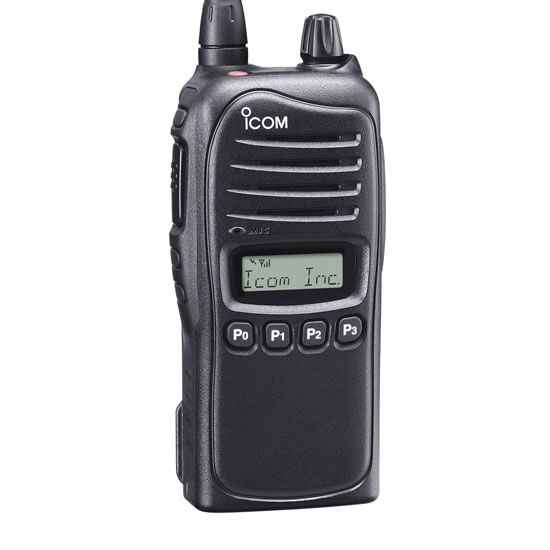

              S series    has 4 softkeys on front of radio as shown in picture

           T series    has 4 softkeys  and   DTMF keypad



Portable Specifications:

Compact lightweight body
The rounded compact* design fits comfortably in your palm and is light-weight** for carrying around all day. The large size programmable buttons have ample button pitch to allow blind touch operation.
* 53(W)x120(H)x32.5(D) mm; 23/32x 423/32x19/32 in
** 260g; 9.2oz including BP-231

IP54 dust-protection and splash resistance
The IC-F3021 series meets IP54 requirements for dust-protection and splash resistance. The aluminum die-cast chassis is the basis for this rugged construction, allowing long-life usage in various environments.

128 memory channels and button control memory channel
The IC-F3021 series has 128 memory channels with 8 zones. Memory channel selection can be made easily with the up/down buttons laid out below the PTT button.

Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, Multiple 5-Tone
Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code. Beep sound Answer back Scan Bell icon Radio stun/kill

Lithium-Ion battery standard
The IC-F3021 series comes with the BP-231 Li-Ion battery pack as standard. Li-Ion batteries have virtually no memory issues and allows you flexible charging. The optional BP-232 provides a high capacity 2000mAh for longer operating time.

Alphanumeric display
The 8-character alphanumeric display shows channel, zone, tone code and scanning channel names on the display. A separate row of operational icons indicate battery, signal strength, RX/TX and other radio conditions.

Wide frequency coverage
The IC-F3021 series covers a wide frequency range with one version 136-174MHz. Wide and narrow channel spacing (25, 12.5kHz) is programmable per channel.


Optional board
The IC-F3021 series has a 40-pin expansion socket for adding an optional board. A voice scrambler provides secure conversation and the DTMF decoder features has ANI capability, depending on the installed board.

Optional VOX headset
With one of Icom's optional headsets and PTT/VOX unit, the IC-F3021 series offers hands-free operation.

Other features
  • TOT function and lock out penalty timer
  • 8 DTMF autodial memories
  • 2 step power saver
  • Surveillance function temporarily turns off the LED backlight and beep sound
  • Normal and priority scan
  • 500mW loud and clear audio
  • Embedded ESN (Electronic serial number)

**********************************************************************

Radios comes with:

                  BC-160 desk charger,

                  BP-231 Lith-ion battery,

                  antenna,    belt clip,   &   manual



**********************************************************************

VHF  model    or    UHF  model     comes with rapid desk charger  BC-160,  belt clip, and programmed with your frequencies, and private line tones setup.


*******************************************************

Other     VERTEX,        TEKK,      &      ICOM        portables available:

VERTEX  VX-132                       VERTEX   VX-231                      VERTEX   VX-420

VERTEX   VX-350                      VERTEX   VX-820                      VERTEX  VX-920



TEKK   XV-1000  vhf                   TEKK    XU-1000  uhf                 TEKK   XV-100  vhf

TEKK   VU-100  uhf                     TEKK   XV-1000e   vhf               TEKK  XU-1000e  uhf



ICOM  F3001 / F4001,                  ICOM  F3011 / F4011,               ICOM  F3021 / 4021

ICOM  F50 / F60                           ICOM    IC-4088A

*******************************************************

Frequency reprogramming of the radio, for the life of the radio FREE you just pay shipping !

Also after the sale my service does not stop.

Please feel free to call or email for any type of info on ICOM RADIOS, even if you didn't buy it from me.

That's  Radio Man's  SUPER SERVICE!



*******************************************************

Email ME for your FREE owners manual, see if this is the radio you need.

Ask Me Radio questions, even if you didn't buy it from Delcom

*******************************************************

                          or    Order equipment  by:

         Phone  Fax  or  Email  delcomindustries@yahoo.com
